Leakage Inductance Reduction Using the Interleaved Winding Technique in High-Frequency Toroidal Transformers

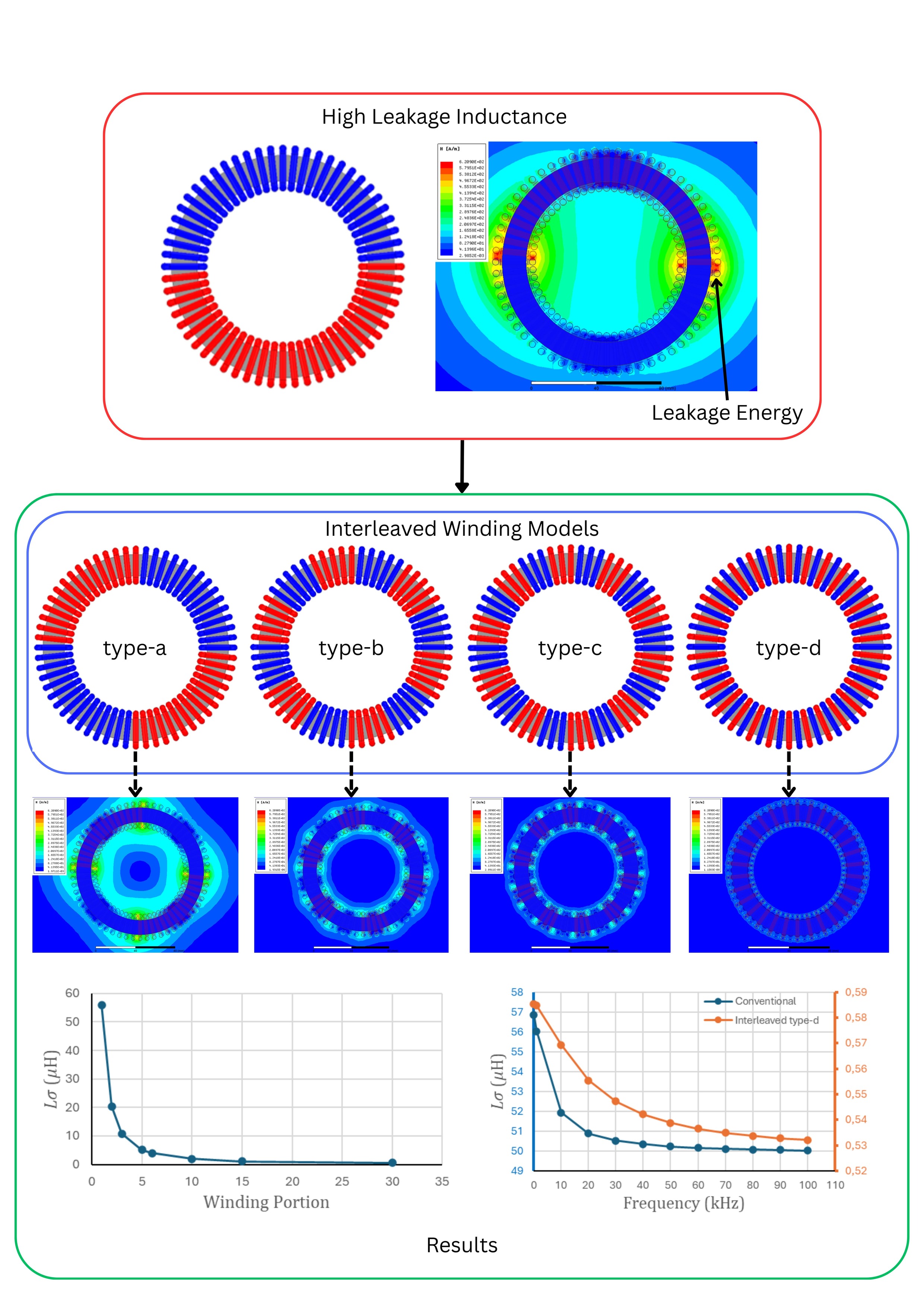

High leakage inductance in transformers is the main cause of excessive voltage spikes and ringing waveforms in dc-dc converters. Therefore, reducing leakage inductance is important in the design of power electronic devices. This paper provides an analysis of high-frequency leakage inductance in toroidal transformers. The leakage inductance is reduced by implementing an interleaved winding arrangement. Interleaved winding is a winding method in which the primary and secondary windings are positioned side by side in each 1 winding. The leakage magnetic field strength distribution is also analyzed in several winding arrangements using FEA simulation. The effect of leakage inductance on high frequency is also discussed. The frequency effect shows the difference in the magnetic energy leakage curves between conventional and interleaved windings. The results indicate that the interleaved winding technique reduced the leakage inductance from an initial value of 56.03 µH to 0.58 µH, representing a reduction of 98.9%. The high-frequency effects show a 9.01% reduction in the leakage inductance of the interleaved winding arrangement.

High frequency; Interleaved winding; Leakage inductance; Leakage magnetic field; Toroidal transformers

Ali, Y, Zheng, Y, Khan, MM, Ji, L & Ali, A 2021, 'Study of toroidal core multilimb transformer (TCMLT) for high-power DC application', IEEE Journal of Emerging and Selected Topics in Power Electronics, vol. 9, no. 3, pp. 2951-2964, https://doi.org/10.1109/JESTPE.2021.3052245

Amirbande, M & Vahedi, A 2020, 'Calculation of leakage inductance in toroidal core transformer with non-interleaved windings', IEEE Transactions on Plasma Science, vol. 48, no. 12, pp. 4215–4220, https://doi.org/10.1109/TPS.2020.3035901

Andreas, J, Setiawan, EA, Halim, S, Atar, M & Shabrina, HN 2018, 'Performance test of 2.5 kW DC boost converter for nanogrid system applications', International Journal of Technology, vol. 9, no. 6, pp. 1285-1294, https://doi.org/10.14716/ijtech.v9i6.2429

Ann, S, Son, WJ, Lee, JH, Byun, J & Lee, BK 2020, 'Design of a SiC-based LLC resonant converter for on-board chargers considering parasitic capacitance of planar transformer', In: 2020 23rd International Conference on Electrical Machines and Systems (ICEMS), IEEE, pp. 315–319, https://doi.org/10.23919/ICEMS50442.2020.9291245

Ataullah, H, Iqbal, T, Khalil, IU, Mohammad, AS, Ullah, N & Farrag, ME 2022, 'Analysis and verification of leakage inductance calculation in DAB converters based on high-frequency toroidal transformers under different design scenarios', Energies, vol. 15, no. 17, article 6176, https://doi.org/10.3390/en15176176

Attia, H & Suan, FTK 2024, 'Robust sliding mode controller design for boost converter applications', International Journal of Technology, vol. 15, no. 3, pp. 481-491, https://doi.org/10.14716/ijtech.v15i3.5164

Bahmani, MA, Thiringer, T & Ortega, H 2014, 'An accurate pseudoempirical model of winding loss calculation in HF foil and round conductors in switchmode magnetics', IEEE Transactions on Power Electronics, vol. 29, no. 8, pp. 4231–4246, https://doi.org/10.1109/TPEL.2013.2292593

Baktash, A & Vahedi, A 2014, 'Calculation of parasitic elements in toroidal core transformers', IEEE Transactions on Plasma Science, vol. 42, no. 6, pp. 1690–1696, https://doi.org/10.1109/TPS.2014.2318757

Barrios, EL, Urtasun, A, Ursúa, A, Marroyo, L & Sanchis, P 2014, 'High-frequency power transformers with foil windings: Maximum interleaving and optimal design', IEEE Transactions on Power Electronics, vol. 30, no. 10, pp. 5712–5723, https://doi.org/10.1109/TPEL.2014.2368832

Bird, L, Milligan, M & Lew, D 2013, 'Integrating variable renewable energy: Challenges and solutions', National Renewable Energy Laboratory, Golden, CO, United States, NREL/TP-6A20-60451, http://www.nrel.gov/docs/fy13osti/60451.pdf

Bu, Z, Wang, J, Li, X & Sun, X 2022, 'Parameters influences analysis and optimization design method for synchronous transformer of switched-capacitor MMC-SST', IEEE Transactions on Power Electronics, vol. 38, no. 3, pp. 3298-3314, https://doi.org/10.1109/TPEL.2022.3219127

Chen, B 2019, 'Analysis of effect of winding interleaving on leakage inductance and winding loss of high frequency transformers', Journal of Electrical Engineering & Technology, vol. 14, pp. 1211-1221, https://doi.org/10.1007/s42835-019-00129-6

Chen, K & Kumar, N 2014, 'Influence of isolation transformer leakage inductance on constant current output of Class D series–parallel LCC?type resonant converter for light?emitting diode lighting application', IET Power Electronics, vol. 7, no. 6, pp. 1362-1373, https://doi.org/10.1049/iet-pel.2013.0635

Choi, J-M, Byen, B-J, Lee, Y-J, Han, D-H, Kho, H-S & Choe, G-H 2012, 'Design of leakage inductance in resonant DC-DC converter for electric vehicle charger', IEEE Transactions on Magnetics, vol. 48, no. 11, pp. 4417-4420, https://doi.org/10.1109/TMAG.2012.2196027

Dang, Y, Zhu, L, Liu, J, Zhan, C, Long, L & Ji, S 2022, 'Module integral method for the calculation of frequency-dependent leakage inductance of high-frequency transformers', IEEE Transactions on Power Electronics, vol. 37, no. 6, pp. 7028-7038, https://doi.org/10.1109/TPEL.2022.3141242

Das, AK, Tian, H, Wei, Z, Vaisambhayana, S, Cao, S, Tripathi, A & Kjær, PC 2017, 'Accurate calculation of winding resistance and influence of interleaving to mitigate ac effect in a medium-frequency high-power transformer', In: 2017 Asian Conference on Energy, Power and Transportation Electrification (ACEPT), IEEE, pp. 1-6, https://doi.org/10.1109/ACEPT.2017.8168612

De León, F, Purushothaman, S & Qaseer, L 2014, 'Leakage inductance design of toroidal transformers by sector winding', IEEE Transactions on Power Electronics, vol. 29, no. 1, pp. 473-480, https://doi.org/10.1109/TPEL.2013.2251429

Djuhana, D, Kurniawan, C, Kim, D-H & Widodo, AT 2021, 'Micromagnetic simulation of domain structure transition in ferromagnetic nanospheres under zero external field', International Journal of Technology, vol. 12, no. 3, pp. 539-548, https://doi.org/10.14716/ijtech.v12i3.4278

Fouineau, A, Raulet, MA, Lefebvre, B, Burais, N & Sixdenier, F 2018, 'Semi-analytical methods for calculation of leakage inductance and frequency-dependent resistance of windings in transformers', IEEE Transactions on Magnetics, vol. 54, no. 10, pp. 1-10, https://doi.org/10.1109/TMAG.2018.2858743

Guo, X, Li, C, Zheng, Z & Li, Y 2021, 'General analytical model and optimization for leakage inductances of medium-frequency transformers', IEEE Journal of Emerging and Selected Topics in Power Electronics, vol. 10, no. 4, pp. 3511-3524, https://doi.org/10.1109/JESTPE.2021.3062019

Hernández, I, De León, F & Gómez, P 2011, 'Design formulas for the leakage inductance of toroidal distribution transformers', IEEE Transactions on Power Delivery, vol. 26, no. 4, pp. 2197-2204, https://doi.org/10.1109/TPWRD.2011.2157536

Lim, C-Y, Jeong, Y-K & Moon, G-W 2019, 'Phase-shifted full-bridge DC-DC converter with high efficiency and high power density using center-tapped clamp circuit for battery charging in electric vehicles', IEEE Transactions on Power Electronics, vol. 34, no. 11, pp. 10945–10959, https://doi.org/10.1109/TPEL.2019.2899960

Liu, X, Ma, C, Fan, E, Zhao, L & Ge, Q 2023, 'A method for suppressing core eddy current loss caused by leakage flux in nanocrystalline high-frequency transformer', in 2023 IEEE 6th International Electrical and Energy Conference (CIEEC), IEEE, pp. 4410-4413, https://doi.org/10.1109/CIEEC58067.2023.10165772

Liu, Z, Zhu, J & Zhu, L 2018, 'Accurate calculation of eddy current loss in litz-wired high-frequency transformer windings', IEEE Transactions on Magnetics, vol. 54, no. 11, pp. 1-5, https://doi.org/10.1109/TMAG.2018.2854894

Michaud, A 2020, 'Electromagnetism according to Maxwell's initial interpretation', Journal of Modern Physics, vol. 11, no. 1, pp. 16-80, https://doi.org/10.4236/jmp.2020.111003

Muhammad, KS & Lu, DD-C 2013, 'Magnetically isolated gate driver with leakage inductance immunity', IEEE Transactions on Power Electronics, vol. 29, no. 4, pp. 1567-1572, https://doi.org/10.1109/TPEL.2013.2279548

Nia, MSS, Saadatmand, S, Altimania, M, Shamsi, P & Ferdowsi, M 2019, 'Analysis of various transformer structures for high frequency isolation applications', In: 2019 North American Power Symposium (NAPS), IEEE, pp. 1-6, https://doi.org/10.1109/NAPS46351.2019.9000392

Noah, M, Shirakawa, T, Umetani, K, Imaoka, J, Yamamoto, M & Hiraki, E 2019, 'Effects of secondary leakage inductance on the LLC resonant converter', IEEE Transactions on Power Electronics, vol. 35, no. 1, pp. 835-852, https://doi.org/10.1109/TPEL.2019.2911093

Ouyang, Z, Zhang, J & Hurley, WG 2015, 'Calculation of leakage inductance for high-frequency transformers', IEEE Transactions on Power Electronics, vol. 30, no. 10, pp. 5769-5775, https://doi.org/10.1109/TPEL.2014.2382175

Park, S-S, Jeon, M-S, Min, S-S & Kim, R-Y 2023, 'High-frequency planar transformer based on interleaved serpentine winding method with low parasitic capacitance for high-current input LLC resonant converter', IEEE Access, vol. 11, pp. 84900-84911, https://doi.org/10.1109/ACCESS.2023.3303207

Poongothai, C & Vasudevan, K 2018, 'Analysis of high frequency, high ratio transformer configurations for DC-DC converter applications', In: 2018 IEEE International Conference on Power Electronics, Drives and Energy Systems (PEDES), IEEE, pp. 1-5, https://doi.org/10.1109/PEDES.2018.8707892

Rahman, A, Hassan, N & Ihsan, SI 2022, 'Fuzzy logic controlled two speed electromagnetic gearbox for electric vehicle', International Journal of Technology, vol. 13, no. 2, pp. 297-309, https://doi.org/10.14716/ijtech.v13i2.3913

Rothmund, D, Guillod, T, Bortis, D & Kolar, JW 2018, '99.1% efficient 10 kV SiC-based medium-voltage ZVS bidirectional single-phase PFC AC/DC stage', IEEE Journal of Emerging and Selected Topics in Power Electronics, vol. 7, no. 2, pp. 779-797, https://doi.org/10.1109/JESTPE.2018.2886140

Stadler, A & Albach, M 2006, 'The influence of the winding layout on the core losses and the leakage inductance in high frequency transformers', IEEE Transactions on Magnetics, vol. 42, no. 4, pp. 735-738, https://doi.org/10.1109/TMAG.2006.871383

Strous, T & Simonelli, G 2019, 'Improved power transformer performance using leakage inductance shielding', In:2019 European Space Power Conference (ESPC), pp. 1-6, https://doi.org/10.1109/ESPC.2019.8932074

Tabei, B, Ametani, A, Gole, AM & Kordi, B 2020, 'Study of skin and proximity effects of conductors for MTL-based modeling of power transformers using FEM', in 2020 IEEE Power & Energy Society General Meeting (PESGM), IEEE, pp. 1-5, https://doi.org/10.1109/PESGM41954.2020.9281776

Zhang, K, Chen, W, Cao, X, Pan, P, Azeem, SW, Qiao, G & Deng, F 2019, 'Accurate calculation and sensitivity analysis of leakage inductance of high-frequency transformer with Litz wire winding', IEEE Transactions on Power Electronics, vol. 35, no. 4, pp. 3951-3962, https://doi.org/10.1109/TPEL.2019.2936523

Zhao, B, Ouyang, Z, Duffy, MC, Andersen, MA & Hurley, WG 2017, 'An improved partially interleaved transformer structure for high-voltage high-frequency multiple-output applications', IEEE Transactions on Industrial Electronics, vol. 66, no. 4, pp. 798-804, https://doi.org/10.1109/IECON.2017.8216138

Zhao, X, Liu, X, Zhao, H, Li, Y, Liu, Y & Yuan, D 2020, 'Two-dimensional vector hysteresis modeling for soft magnetic composite materials considering anisotropic property', In: 2020 IEEE Industry Applications Society Annual Meeting, IEEE, pp. 1-6, https://doi.org/10.1109/IAS44978.2020.9334770
